ICE+ PE500
The perfect glide

  • 100%
High molecular weight polyethylene self-lubricated & developed with an advanced extruded technology for an optimal glide condition.

EXTRUDED

  • Suitable for all surfaces
  • Storageable & mobile
  • Fast & easy to install

POLYETHYLENE

  • Needless lubrification
  • Low maintenance
  • Fast cleaning

EXPERTS

  • UV resistance & low dilatation
  • Water proof in all its forms
  • Both sides usable
  • Eco-Friendly
Get your rink

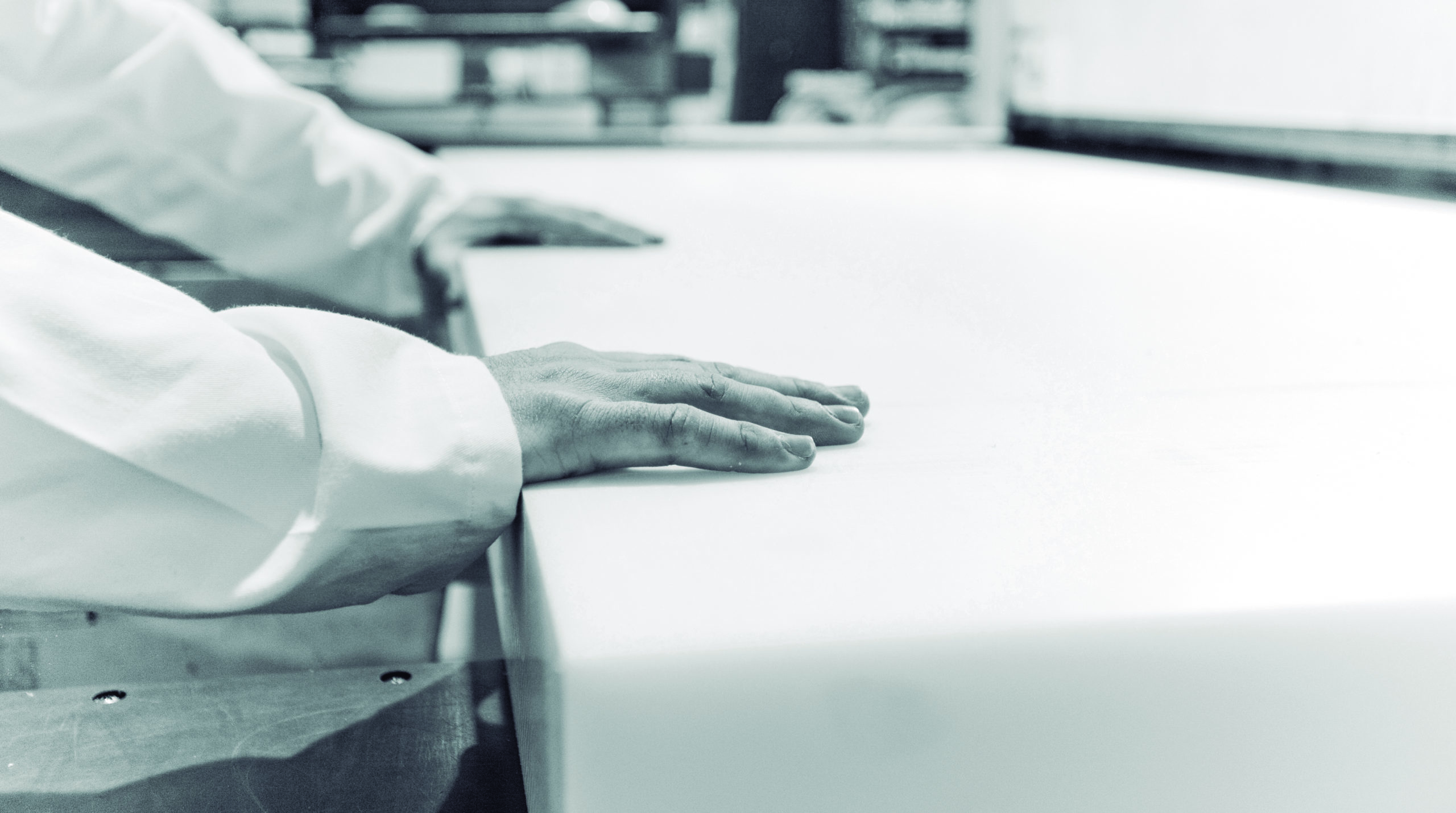

_MG_9357

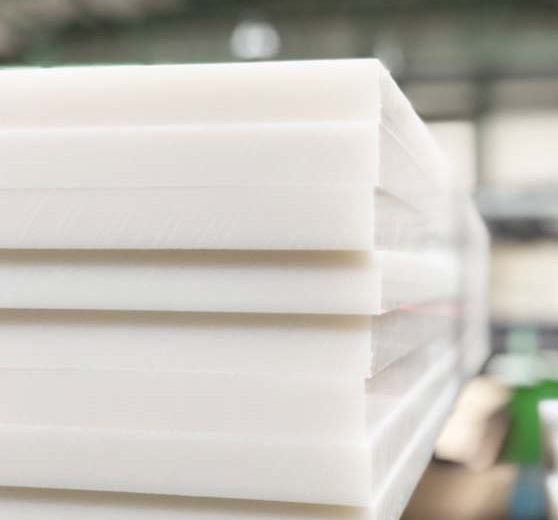

ICEDUR_01

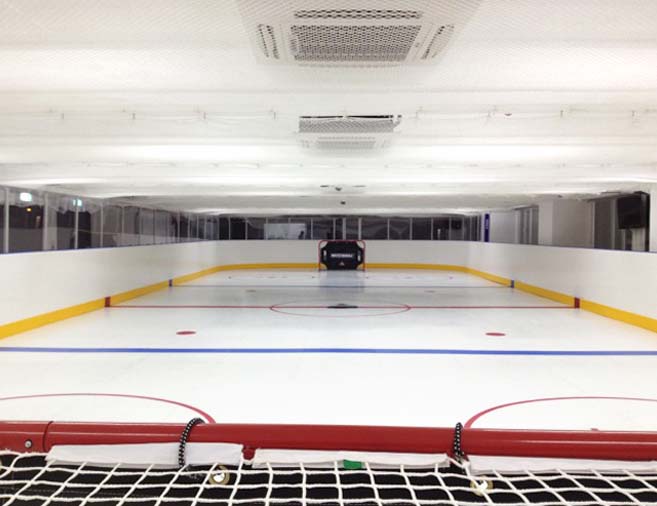

Pistes de gel
pexels-tony-schnagl-6468948
WhatsApp Image 2017-09-27 at 23.42.45
pexels-tima-miroshnichenko-6847301

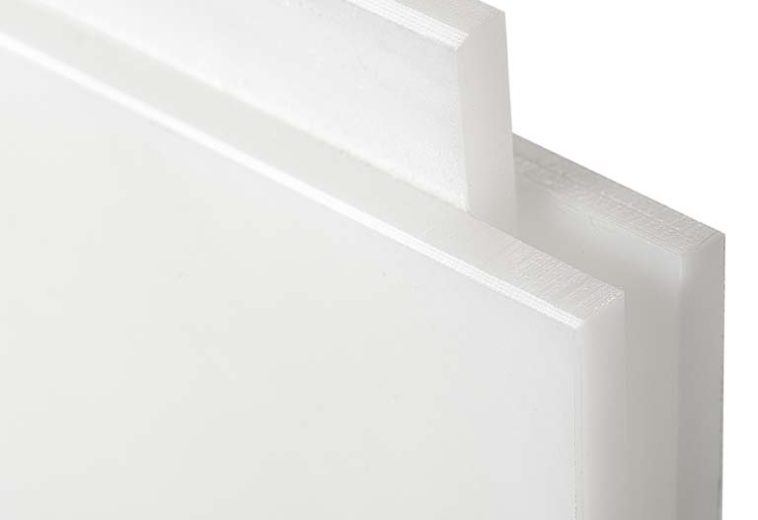

Encaje

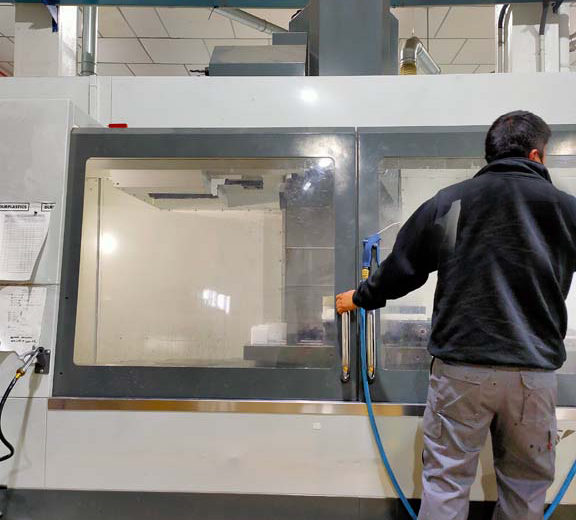

retouchedicedur

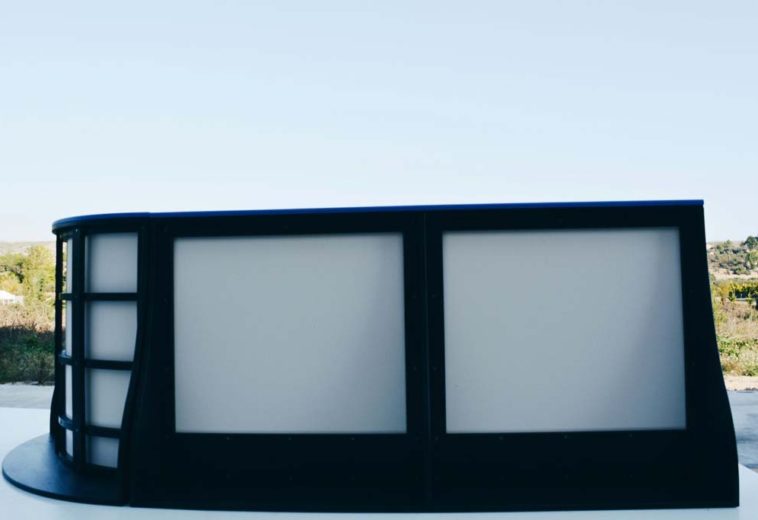

WhatsApp Image 2017-09-27 at 23.42.54
DURPLASTICS_Industrial_010

Polyethylene

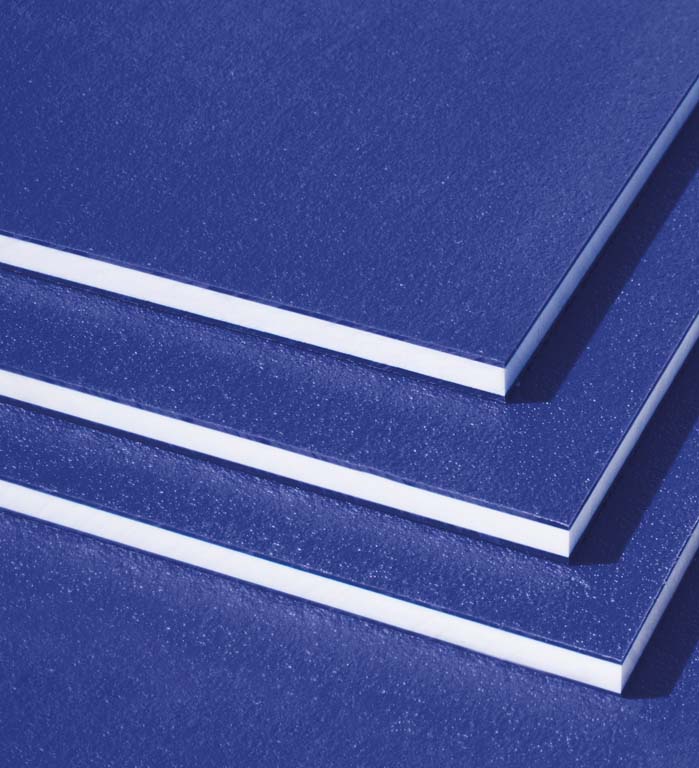

DSC_0433_3_2
Polyethylene is a 100% recyclable material and its use is suitable for many sectors. This material has great resistance to abrasion, wear, chemicals and shocks. It is widely used in the industrial sector due to its low coefficient of friction.

The production system used to manufacture this material is extrusion. Its main properties are: smooth finish, standard color palette, any format can be requested and special colors are available on request.

Main Properties:

  • High resistance to chemicals
  • High resistance to abrasion
  • UV and weather resistant
  • Insensitivity to soil settlement
  • Outstanding processing properties
  • Excellent weldability

ICEPLUS TECHNICAL DATA

GENERAL


TECHNICAL DATA

Density
  • 0,937 g/cm3
  • METHOD: UNE-EN ISO 1183-1
Ultraviolet radiation
  • Good
Water Absorption
  • 0,1 %
  • UNE-EN ISO 62
Horizontal Flammability
  • HB
  • UL 94
Contact us

TEST METHOD


TECHNICAL DATA

Strength
  • 26 MPa
  • UNE-EN ISO 527-2
Elongation at strength
  • 7,7 %
  • UNE-EN ISO 527-2
Stress at break
  • 13,8 MPa
  • UNE-EN ISO 527-2
Elongation at break
  • 147,8 %
  • UNE-EN ISO 527-2
Flexural modulus
  • 1230 MPa
  • UNE-EN ISO 178
Flexural strength
  • 29 MPa
  • UNE-EN ISO 178
Charpy impact strength
  • 18,5 kJ/m2
  • UNE-EN ISO 180
Durometre hardness
  • 66 Shore D
  • ISO 868
Contact us

THERMAL


TECHNICAL DATA

Melting point
  • 130,7
  • UNE-EN ISO 11357-1
Thermal conductivity
  • 0,4 W/(m·K)
  • ISO 52612-1
Coefficient of linear thermal expansion
  • 150 to 230 10-4 K-1
  • DIN 53752
Temperature Range oC long term
  • -100 to 80 oC
Contact us

ELECTRICAL


TECHNICAL DATA

Dielectric constant
  • 2,4
  • IEC 60250
Surface resistivity
  • 10 (14) Ω
  • IEC 60093
Dielectric strength
  • 42 KV/mm
